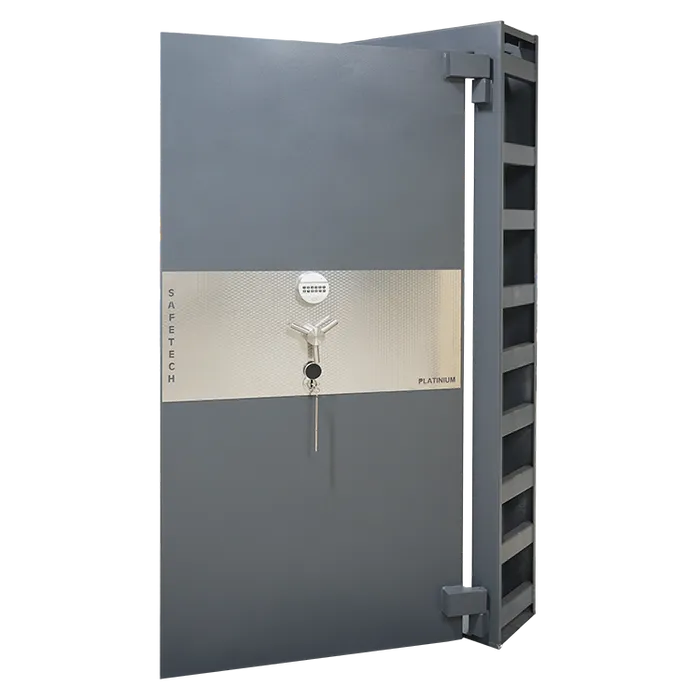

Vault Door with panic
2.5-inch 3.5-inch 4.5-inch 5.5-inchThe strongroom door with panic are specially designed to meet the demands for a high security installation. Constructed to resist against modern cutting tools such as high-speed drills, force and fire
Benefits
- Door secured by 7 active front bolts, 2 active top bolts, 2 active bottom bolts and 7 fixed rear bolts. Each bolt has a diameter of 35 mm of stainless Teel round bar
- Secured with a single 3-wheel keyless combination lock UL LISTED made in U.S.A and a 11-lever double bitted key lock MADE IN Germany as standard.
- The door set includes a door leaf with a locking mechanism and hardware & Door locking system – active steel bolts 35 mm and passive bolts at the hinge side
- Every vault door is equipped with additional inner grill door with lever key lock
- High-quality and strong hinges with the bearing mechanism
- Protected by Glass plate covered the entire locking mechanism attached to relocking device any forced attempts to dislodge the locks would activate the re-lockers and hence restricts the movement of the internal bolt work system.
- Built-in door for emergency use size height 55 (cm) Width 60 (cm) with 3 way moving bolts.
CONSTRUCTION
The solid door slab with protective thickness forms the basis of the door, which has a huge thickness. Filled with specifically SafeTech formulated barrier material & composite, reinforced with steel fibers.
Standard locks for built-in door and door- Keyless combination lock: Secured by a high security 3-wheel keyless combination lock of 1,000,000 changes of code. The lock certificated under UL Group 2, Vds Class 1, Cen A.
- Keylock: Secured by a 11-lever double bitted high security Key lock from Germany with non-detachable key bit.
When ordering, please state:
- Thickness of RC wall
- Hung of door required
- Path of access to where door is to be installed
Including hinges and handle measurements:

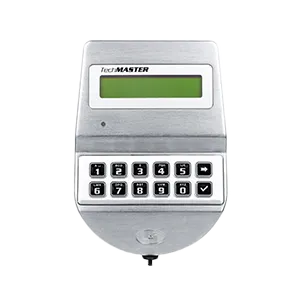

TechMaster
LA Gard 2270 key lock

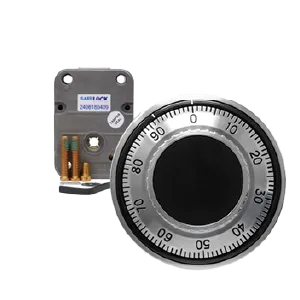

La Gard 3-wheel combination lock

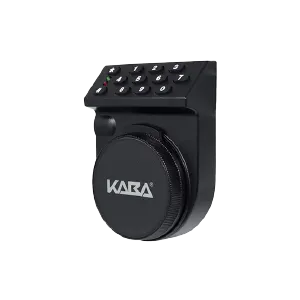

Auditcon 552

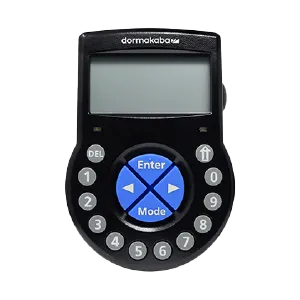

Axessor usb

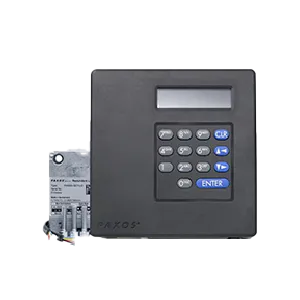

paxos keypad lockset
Specifications
| Vault door with Panic | |||||
|---|---|---|---|---|---|
| Model | External Dimensions (cm) | Clear opening (cm) | Wall Opening (cm) | Wall Thickness (mm) | Approx.Net Weight (kg) |
| 2.5 Inch | 211 Η Χ 120 W | 195 H X 93 W | 135 Η Χ 220 W | 25 (cm) including plastering | 650 Kg |
| 3.5 Inch | 211 H X 120 W | 195 H X 93 W | 135 H X 220 W | 30 (cm) including plastering | 820 KG |
| 4.5 Inch | 211 Η Χ 120 W | 195 H X 93 W | 135 H X 220 W | 35 (cm) including plastering | 1,270 KG |
| 5.5 Inch | 211 H X 120 W | 195 H X 93 W | 135 H X 220 W | 40 (cm) including plastering | 1,570 KG |
